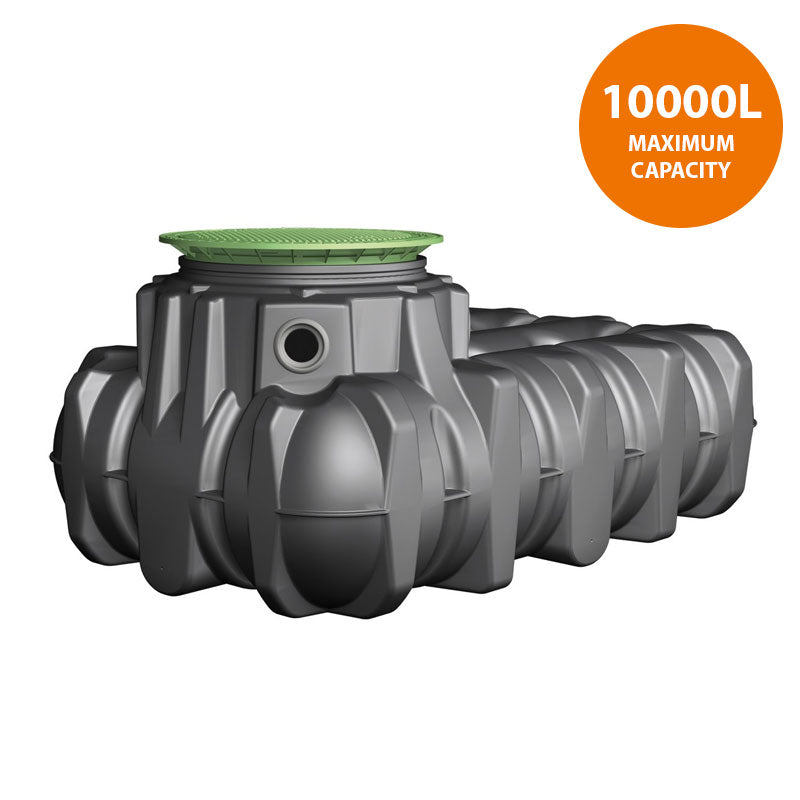

GRAF Platin XL Direct Complete Package Rainwater Harvesting System 10000L | G70430

£4,450.00
£5,340.00 (inc VAT)
£4,450.00 (exc VAT)

FREE UK
DELIVERY

CUSTOMER OFFLOADING

RAINWATER
HARVESTING

Quantity

Secure Payment - Multiple Payment Gateways

Product Description

This product is delivered directly from the supplier, lead times vary.



The GRAF Platin XL Direct Complete Package 10000L is a premium rainwater harvesting system designed for properties with higher water demands. Featuring a 10,000-litre underground storage tank, this complete package enables the collection, storage and reuse of rainwater for non-potable applications such as toilet flushing, washing machines, garden irrigation and outdoor cleaning. By reducing reliance on mains water, the system helps lower utility bills while supporting sustainable water management.

Built around the innovative GRAF Platin XL shallow-dig tank, the system offers a low-profile design that requires less excavation than traditional underground tanks, helping to reduce installation time and costs. Manufactured from 100% recycled plastic, the tank provides exceptional strength, durability and corrosion resistance. For added flexibility, the system can be installed in landscaped areas or beneath vehicle-accessible surfaces when fitted with the appropriate vehicle-loading cover. Supplied as a complete package, it includes advanced filtration, automatic mains water top-up and intelligent level monitoring to ensure a reliable water supply throughout the year.


Key Features & Benefits:

  • Large 10,000-litre underground rainwater storage capacity
  • Ideal for homes, commercial buildings and properties with higher water demand
  • Suitable for toilet flushing, washing machines, garden irrigation and outdoor cleaning
  • Helps reduce mains water consumption and water bills
  • Shallow-dig tank design reduces excavation requirements
  • Manufactured from 100% recycled plastic
  • Durable, corrosion-resistant construction
  • Integrated mains water top-up system for uninterrupted supply
  • Float sensor automatically monitors tank water levels
  • High-performance Minimax-PRO filtration system
  • Suitable for pedestrian areas and vehicle-loaded installations
  • Complete package with essential installation components included
  • Environmentally friendly rainwater reuse solution
  • Low-maintenance and efficient operation



What's Included:

  • GRAF Platin XL 10000L shallow-dig underground tank
  • Dome and sealing set (DN100)
  • Telescopic Dome Shaft Mini Green with PE lid
  • Pedestrian or vehicle-loading cover option
  • Minimax-PRO internal filter
  • Inflow stilling system
  • Overflow siphon
  • Spannfix DN100 connector
  • 25m roll of 25mm rainwater harvesting pipe with fittings
  • Float sensor for automatic water level monitoring
  • Mains water top-up system



Specification Value
Model G70430
Maximum Capacity 10,000L
Dimensions (L x W x H) 4900 x 2250 x 1300 mm
Weight (Empty) 460 kg
Tank Design Life 50 Years
Tank Warranty 15 Years



Graf Platin House Direct Data
Graf Platin 10000L Drawing
Graf Platin Tank Installation Guide
Graf Platin RWH Brochure 1500 - 7500L
Graf Platin RWH Mains Back Up

SKU: TANRAINGRA005

Why Choose Direct Drainage for Rainwater Harvesting?

Free Tank Delivery

Tanks ship direct from the manufacturer, with lead times varying by product.

Best Price Guarantee

Found the same tank cheaper? Send us the quote and we’ll try to match it.

Sustainable Water Solutions

Collect, store and reuse rainwater for irrigation, domestic and commercial applications.

Expert Tank Support

Need help choosing the right tank? Call our team on 01388 537050.

You May Also Like

CUSTOMER REVIEWS

Rated 4.8/5 by Direct Drainage Customers

Based on over 600 verified reviews

VERIFIED REVIEW

Very helpful from the start to the finish

Items were despatched quickly and arrived the next day. Would recommend.

Title

North Hayne Farm Cottages | 26 June 2026

VERIFIED REVIEW

Cheapest price I could find for the pump

Cheapest price I could find for the pump and delivery the next day what more could you want.

Title

Sam Jukes | 5 November 2025

VERIFIED REVIEW

Great service!

I ordered a septic tank it was delivered within a week and the delivery driver left it in the exact right place and time. Would definitely use this company again, thanks so much.

Title

Eve Harland | December 2025

OFFICIAL SUPPLIERS OF:

FAQs

Everything you need to know about rainwater harvesting systems, water storage tanks and sustainable water reuse.

What is a rainwater harvesting system, and how does it work?

A rainwater harvesting system collects and stores rainwater, typically from building roofs, for reuse in suitable non-drinking water applications.



Rainwater is directed through gutters and downpipes into a storage tank, often passing through a filter to remove leaves, debris and other contaminants.



Depending on the system, the collected water can then be supplied to garden irrigation systems, toilets, washing machines or other suitable applications.



Our range includes complete rainwater harvesting systems, underground storage tanks and accessories for domestic, commercial and agricultural use.

What can harvested rainwater be used for?

Harvested rainwater can be used for a variety of non-potable applications, helping reduce reliance on mains water.



Common uses include:

  • Garden watering and landscape irrigation.
  • Toilet and urinal flushing.
  • Vehicle washing and outdoor cleaning.
  • Agricultural irrigation.
  • Washing machines, where supported by a suitable system.
  • Certain commercial and industrial applications.

The intended use will determine the type of rainwater harvesting system, filtration and pumping equipment required.



Harvested rainwater should not be used for drinking or food preparation without appropriate treatment and verification of water quality.

What size rainwater harvesting tank do I need?

The correct rainwater harvesting tank capacity depends on your property's roof area, local rainfall levels, available installation space and expected water consumption.



For example, a system used exclusively for garden irrigation may require a different storage capacity from one supplying toilets and washing machines throughout a property.



Our range includes smaller rainwater storage tanks alongside larger-capacity systems for domestic, commercial and agricultural applications.



When choosing a tank, it's important to consider both the amount of rainwater you can collect and how much you expect to use.



If you're unsure which capacity is suitable, our team can help you identify an appropriate product.

What is the difference between an above-ground and underground rainwater harvesting tank?

Above-ground and underground rainwater harvesting tanks provide different storage solutions depending on your available space and installation requirements.



Above-ground tanks are typically easier to access and are commonly used for garden watering, irrigation and general outdoor water storage.



Underground tanks are installed below ground level, allowing larger quantities of rainwater to be stored without occupying valuable surface space.



Underground systems are particularly popular for new-build properties, landscaping projects and complete domestic rainwater harvesting installations.



The best option depends on your required capacity, available space, intended use and installation conditions.

Can rainwater harvesting systems reduce my water bills?

Yes. Rainwater harvesting systems can help reduce mains water consumption by collecting and reusing rainfall for suitable non-potable applications.



Using harvested rainwater for activities such as toilet flushing, garden irrigation and vehicle washing can reduce the amount of treated mains water required.



However, actual savings depend on rainfall, storage capacity, water usage, system efficiency and whether your property has metered water charges.



Some systems also require electricity for pumps and regular maintenance.



Choosing an appropriately sized system is important for achieving practical long-term water savings.

Do rainwater harvesting systems require maintenance?

Yes. Regular maintenance helps ensure rainwater harvesting systems continue operating efficiently and reliably.



Maintenance may include inspecting and cleaning filters, removing accumulated debris, checking pumps and inspecting tank connections.



Underground and above-ground systems may have different maintenance requirements depending on their design and components.



The frequency of maintenance depends on the system, surrounding environment and amount of debris entering the collection area.



Always follow the manufacturer's maintenance instructions to help maintain water quality and reliable system operation.

How much is delivery, and when will my rainwater harvesting system arrive?

Many of our rainwater harvesting tanks and systems are supplied directly from the manufacturer, with delivery lead times varying depending on the product and availability.



Free delivery is available on eligible products to most mainland UK postcodes, although additional charges or restrictions may apply.



Larger tanks and systems may require specialist transport, suitable delivery access and appropriate offloading equipment.



For current availability, delivery information or an estimated lead time, please contact our team on 01388 537050.
