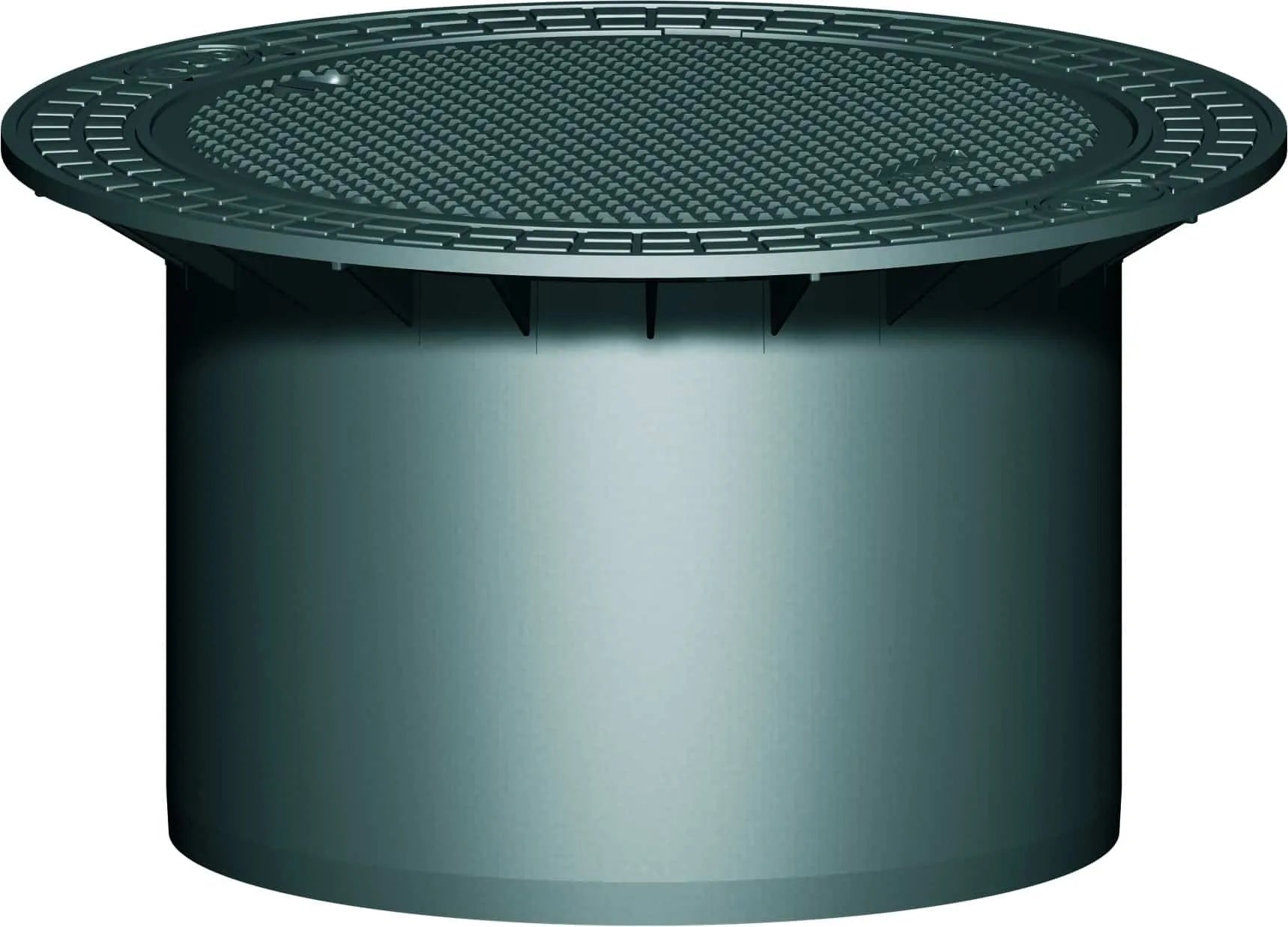

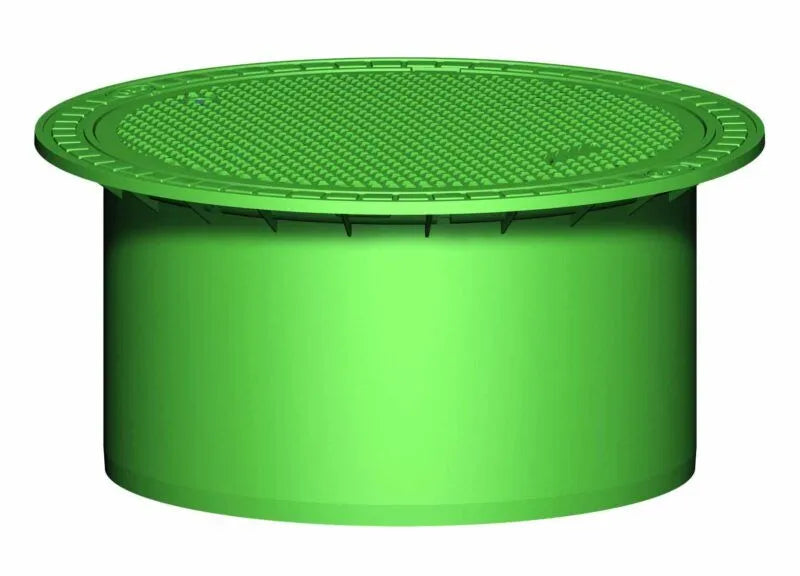

1500L Platin Shallow Dig Garden Comfort Rainwater Harvesting System | G70363

£1,554.91
£1,865.89 (inc VAT)
£1,554.91 (exc VAT)

FREE UK
DELIVERY

CUSTOMER OFFLOADING

RAINWATER
HARVESTING

Quantity

Secure Payment - Multiple Payment Gateways

At a Glance

Key Specifications
1,500 L Capacity
Garden Irrigation & Outdoor Use Application
Underground – Shallow Dig Installation Type
L2100 × W1250 × H1015 mm Tank Dimensions

Product Description

    This product is delivered directly from the supplier, lead times vary.



    The GRAF Platin Garden Comfort Rainwater Harvesting Package is a complete solution for collecting, storing and reusing rainwater for outdoor applications. Built around the innovative GRAF Platin shallow-dig underground tank, this system is designed for fast, cost-effective installation while providing a reliable source of water for garden taps, irrigation systems, vehicle washing and general outdoor cleaning.

    Thanks to its low-profile design, the Platin tank requires significantly less excavation than traditional underground water tanks. Its robust construction allows installation with granular backfill in most ground conditions, helping to reduce installation costs and time. By harvesting and reusing free rainwater, homeowners can potentially reduce mains water consumption by up to 50%, lowering water bills while supporting sustainable water use.



    Key Benefits

    • Complete rainwater harvesting system for outdoor water applications
    • Potentially reduces mains water consumption by up to 50%
    • Ultra-shallow dig design for reduced excavation requirements
    • Quick and straightforward installation
    • Groundwater-stable tank construction
    • Suitable for granular backfill installation
    • Pedestrian-duty telescopic lid included
    • Optional 3.5-tonne vehicle-duty lid available
    • 15-year manufacturer warranty
    • Basket filter for effective debris removal
    • Overflow siphon with integrated rodent guard
    • Integra INOX stainless steel submersible pump included
    • 10m pressure hose supplied as standard
    • Floating intake for cleaner water extraction
    • Internal hose connection box included
    • External hose connection box included
    • Durable, corrosion-resistant construction
    • Ideal for garden watering, vehicle washing and outdoor cleaning



    Specification:

    Model: G70363
    Nominal Capacity (Litres) 1500
    Length (mm): 2100
    Width (mm): 1250
    Height (mm): 1015
    Access Diameter (mm): 800
    Weight (kg): 80
    Pump: 230v Submersible
    Filter Included: Yes
    Warranty: 15 Years (tank)



    Installation Guidance



    SKU: TANRAINGRA024

    WHY DIRECT DRAINAGE?

    Why Choose Direct Drainage for Rainwater Harvesting?

    Reliable delivery, competitive pricing and expert support for rainwater harvesting systems and tanks.

    Free Tank Delivery

    Tanks ship direct from the manufacturer, with lead times varying by product.

    Best Price Guarantee

    Found the same tank cheaper? Send us the quote and we'll try to match it.

    Sustainable Water Solutions

    Collect, store and reuse rainwater for irrigation, domestic and commercial applications.

    Expert Tank Support

    Need help choosing the right tank? Call our team on 01388 537050.

    You May Also Like

    TRUSTED BY OUR CUSTOMERS

    Don't just take our word for it.

    Real experiences from Direct Drainage customers.

    4.8 / 5

    Based on over 600 verified reviews

    VERIFIED REVIEW

    Very helpful from the start to the finish

    Items were despatched quickly and arrived the next day. Would recommend.

    North Hayne Farm Cottages 26 June 2026
    VERIFIED REVIEW

    Cheapest price I could find for the pump

    Cheapest price I could find for the pump and delivery the next day what more could you want.

    Sam Jukes 5 November 2025
    VERIFIED REVIEW

    Great service!

    I ordered a septic tank it was delivered within a week and the delivery driver left it in the exact right place and time. Would definitely use this company again, thanks so much.

    Eve Harland December 2025

    Customer feedback from verified purchases

    OFFICIAL SUPPLIERS OF:

    FAQs

    Everything you need to know about rainwater harvesting systems, water storage tanks and sustainable water reuse.

    What is a rainwater harvesting system, and how does it work?

    A rainwater harvesting system collects and stores rainwater, typically from building roofs, for reuse in suitable non-drinking water applications.



    Rainwater is directed through gutters and downpipes into a storage tank, often passing through a filter to remove leaves, debris and other contaminants.



    Depending on the system, the collected water can then be supplied to garden irrigation systems, toilets, washing machines or other suitable applications.



    Our range includes complete rainwater harvesting systems, underground storage tanks and accessories for domestic, commercial and agricultural use.

    What can harvested rainwater be used for?

    Harvested rainwater can be used for a variety of non-potable applications, helping reduce reliance on mains water.



    Common uses include:

    • Garden watering and landscape irrigation.
    • Toilet and urinal flushing.
    • Vehicle washing and outdoor cleaning.
    • Agricultural irrigation.
    • Washing machines, where supported by a suitable system.
    • Certain commercial and industrial applications.

    The intended use will determine the type of rainwater harvesting system, filtration and pumping equipment required.



    Harvested rainwater should not be used for drinking or food preparation without appropriate treatment and verification of water quality.

    What size rainwater harvesting tank do I need?

    The correct rainwater harvesting tank capacity depends on your property's roof area, local rainfall levels, available installation space and expected water consumption.



    For example, a system used exclusively for garden irrigation may require a different storage capacity from one supplying toilets and washing machines throughout a property.



    Our range includes smaller rainwater storage tanks alongside larger-capacity systems for domestic, commercial and agricultural applications.



    When choosing a tank, it's important to consider both the amount of rainwater you can collect and how much you expect to use.



    If you're unsure which capacity is suitable, our team can help you identify an appropriate product.

    What is the difference between an above-ground and underground rainwater harvesting tank?

    Above-ground and underground rainwater harvesting tanks provide different storage solutions depending on your available space and installation requirements.



    Above-ground tanks are typically easier to access and are commonly used for garden watering, irrigation and general outdoor water storage.



    Underground tanks are installed below ground level, allowing larger quantities of rainwater to be stored without occupying valuable surface space.



    Underground systems are particularly popular for new-build properties, landscaping projects and complete domestic rainwater harvesting installations.



    The best option depends on your required capacity, available space, intended use and installation conditions.

    Can rainwater harvesting systems reduce my water bills?

    Yes. Rainwater harvesting systems can help reduce mains water consumption by collecting and reusing rainfall for suitable non-potable applications.



    Using harvested rainwater for activities such as toilet flushing, garden irrigation and vehicle washing can reduce the amount of treated mains water required.



    However, actual savings depend on rainfall, storage capacity, water usage, system efficiency and whether your property has metered water charges.



    Some systems also require electricity for pumps and regular maintenance.



    Choosing an appropriately sized system is important for achieving practical long-term water savings.

    Do rainwater harvesting systems require maintenance?

    Yes. Regular maintenance helps ensure rainwater harvesting systems continue operating efficiently and reliably.



    Maintenance may include inspecting and cleaning filters, removing accumulated debris, checking pumps and inspecting tank connections.



    Underground and above-ground systems may have different maintenance requirements depending on their design and components.



    The frequency of maintenance depends on the system, surrounding environment and amount of debris entering the collection area.



    Always follow the manufacturer's maintenance instructions to help maintain water quality and reliable system operation.

    How much is delivery, and when will my rainwater harvesting system arrive?

    Many of our rainwater harvesting tanks and systems are supplied directly from the manufacturer, with delivery lead times varying depending on the product and availability.



    Free delivery is available on eligible products to most mainland UK postcodes, although additional charges or restrictions may apply.



    Larger tanks and systems may require specialist transport, suitable delivery access and appropriate offloading equipment.



    For current availability, delivery information or an estimated lead time, please contact our team on 01388 537050.
