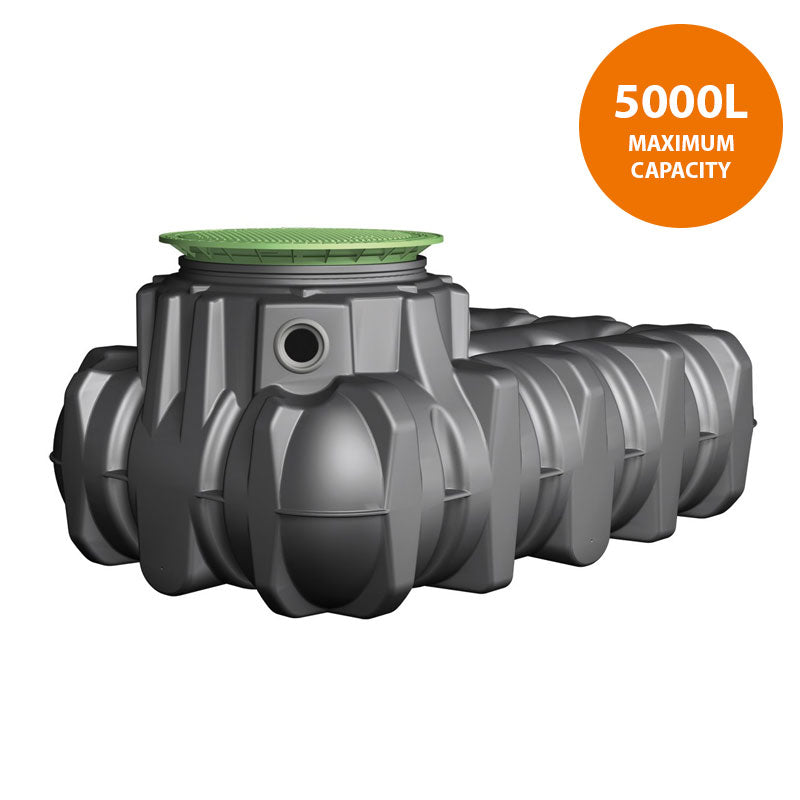

The GRAF Platin Direct Complete Package – 5000L is a high-capacity, fully integrated rainwater harvesting system designed for residential and light commercial use. With a 5000-litre underground tank, this system offers a sustainable and efficient solution for collecting, storing, and reusing rainwater for non-potable applications such as garden irrigation, toilet flushing, and laundry.
Its shallow-dig, flat-profile design allows for easy underground installation, even beneath driveways using the vehicle-loading lid. The system includes all essential components—Minimax-PRO filter, submersible pump, mains water top-up unit, float sensor, and connection pipes—for a complete, ready-to-install package. The tank is made from 100% recycled plastic, ensuring long-term durability and environmental responsibility.
Customer Notice: The processed water may be used to water the garden, flush toilets, wash clothes and as conventional cleaning water. It is Not suitable for consumption or personal hygiene.
What’s Included in the 5000L Complete Package:
PLATIN Shallow Dig Tank (5000L) with dome and sealing set (DN 100)
Telescopic Dome Shaft Mini Green with PE lid (pedestrian or vehicle loading)
Filter Package 3 House, including:
- Minimax-PRO internal filter
- Inflow stilling system
- Overflow siphon
- Spannfix connector (DN 100)
25m Roll of Rainwater Harvesting Pipe (25 mm, with fittings)
Float Sensor (connects mains water top-up unit to tank)
Additional Components Required For Installation (Not supplied)
100mm diameter duct pipe to contain; float sensor cable, power cable for the pump, also bringing mains water to underground tank as and when required.
100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter.
100mm diameter pipe for overflow from the tank to mains drainage network
Product Features:
5000L Capacity: Large underground storage for rainwater, ideal for high-demand domestic reuse.
Complete Installation Kit: Includes all necessary components for a full installation.
Space-Saving Design: Flat tank profile allows installation in shallow excavations.
Integrated Filtration: Built-in filter basket removes debris before water enters the tank.
Versatile Applications: Suitable for garden watering, flushing toilets, and washing machines.
Eco-Friendly Solution: Reduces mains water usage and supports sustainable water management.
LEAD TIME: APPROXIMATELY 5-7 WORKING DAYS
Specifications:
| Specification |
Value |
| Model |
G70179 |
| Maximum Capacity |
5000L |
| Dimensions (L x W x H) |
2890 x 2300 x 1000 mm |
| Weight (Empty) |
250 kg |
| Tank Design Life |
50 Years |
| Tank Warranty |
15 Years |
Need help selecting the right system? Call our expert team on 01388 537 050 or email us with your requirements – we’re happy to help.
