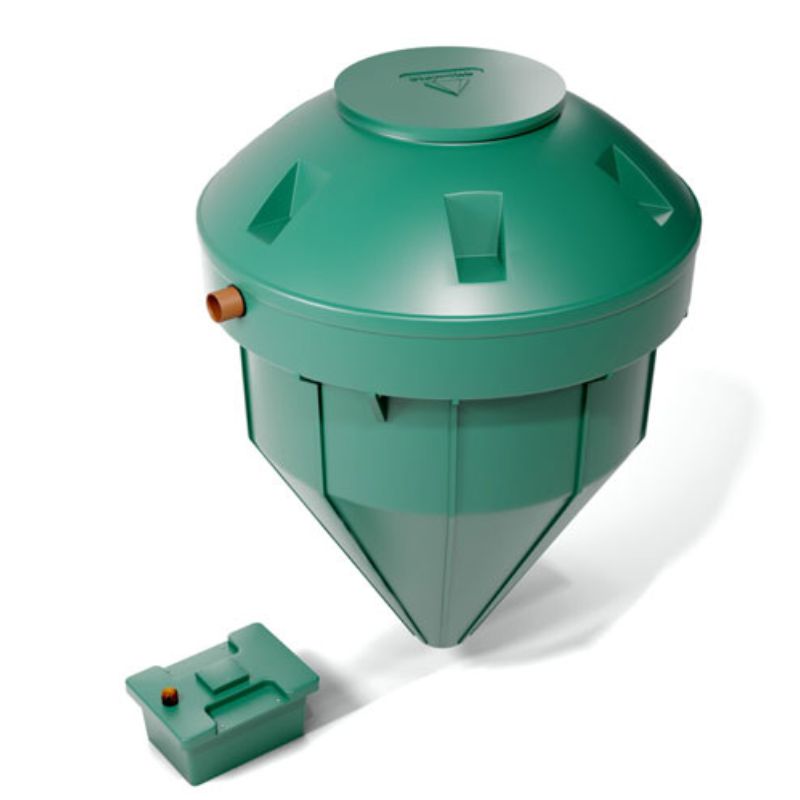

The compact WPL Diamond DMS4 range has the flexibility to be configured to meet for various population sizes. The WPL Diamond DMS4 is suitable for up to 3 bedroom houses. The unit can be installed in ‘wet’ or ‘dry’ ground conditions and discharged safely to soakaways or watercourses.

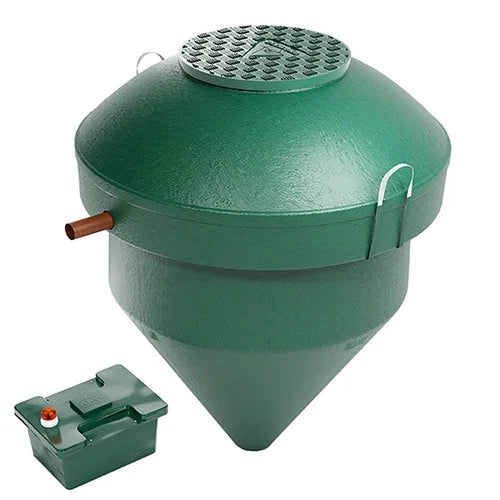

The standard package includes a WPL Diamond tank, WPL kiosk, alarm beacon, blower (housed in a kiosk) and 10 metres air hose.

WPL Range Brochure

WPL Diamond DMS 4 Installation Guide

WPL Diamond DMS 4 Operation and Maintenance Manual

WPL Diamond Installation Guide

 Commissioning and Servicing Information

This is a small and compact wastewater treatment plant designed for properties that house 1 person or up to 20 (people) occupancy equivalent; ideal for new builds and replacement of existing septic tank systems and package sewage treatment plants.

No need for chemicals, allowing final effluent to be safely discharged to a soakaway or watercourse.

Our WPL Diamond is better designed for modern day living than a septic tank system; with a faster process and a more environmentally friendly end result, it is the ideal replacement solution.

WPL Diamond DMS4 – Ideal septic tank replacement

Homeowners with septic tanks that discharge directly into the surface water will now need to consider the option
of replacing with a packaged wastewater treatment plant, by (or before) the 1st January 2020
when selling a property or upgrading an ‘end of life’ septic tank.
Unlike the traditional septic tanks, the modern packaged wastewater (sewage) treatment plants such as a WPL Diamond
are designed with an aerated process for todays’ increased volume of water usage in everyday life.

WPL Diamond DMS4 Features and Benefits

• CE mark, EN12566-3 approval

• Effluent standard; as a minimum: 20mg/l BOD; 30mg/l SS; 20mg/l NH3

• Load tested and water tight

• Part H2 UK building regs compliant

• LABC registered

• Meets General Binding rules

• Designed using British Water Code of practice flows & Loads

• Compact design, minimal excavation

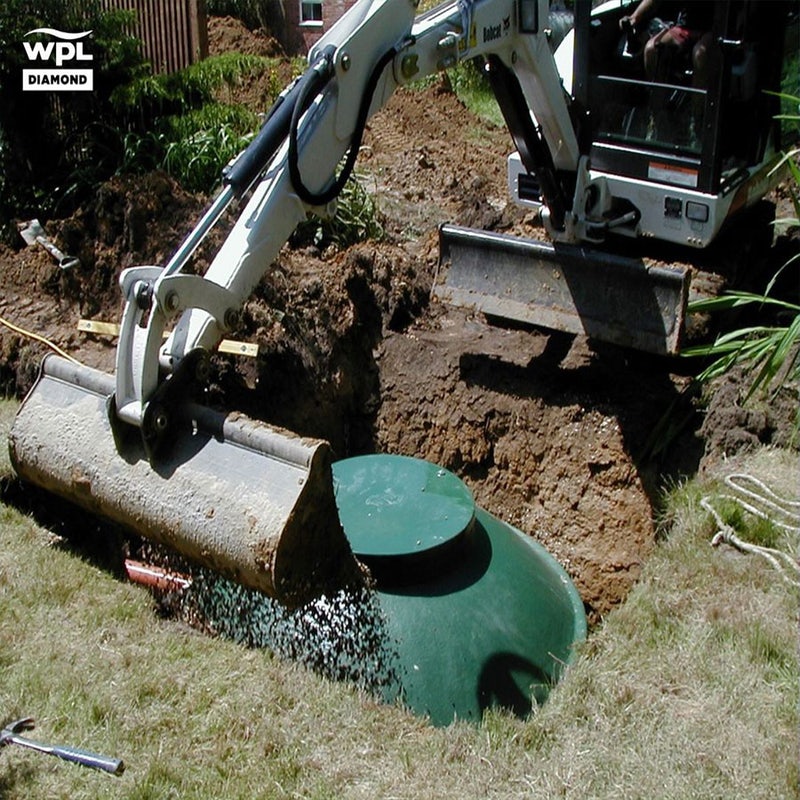

• Installed in ‘wet’ or ‘dry’ ground conditions

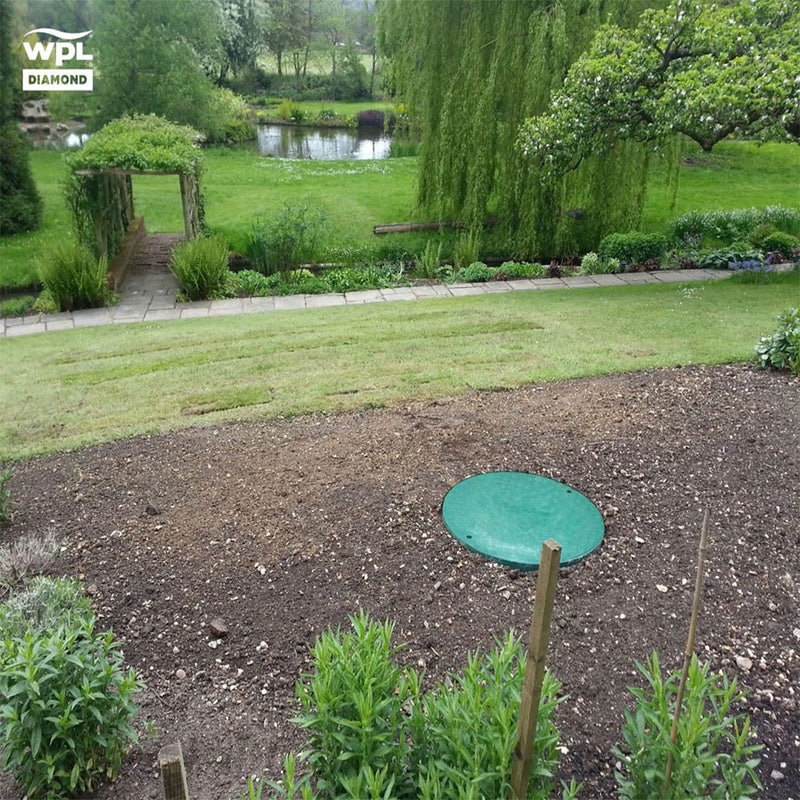

• Flushest lid to the ground

• No moving parts within the tank

• Up to 3 years de-sludge intervals

• No odour

• Alarm beacon included

• Original WPL Diamond, patent granted

• Robust design, UK manufacture

• 460mm Extension Turret available for deeper installations

• Separate Pump Chamber available for sites where a gravity discharge cannot be achieved
