Please call the office for availability and lead-time

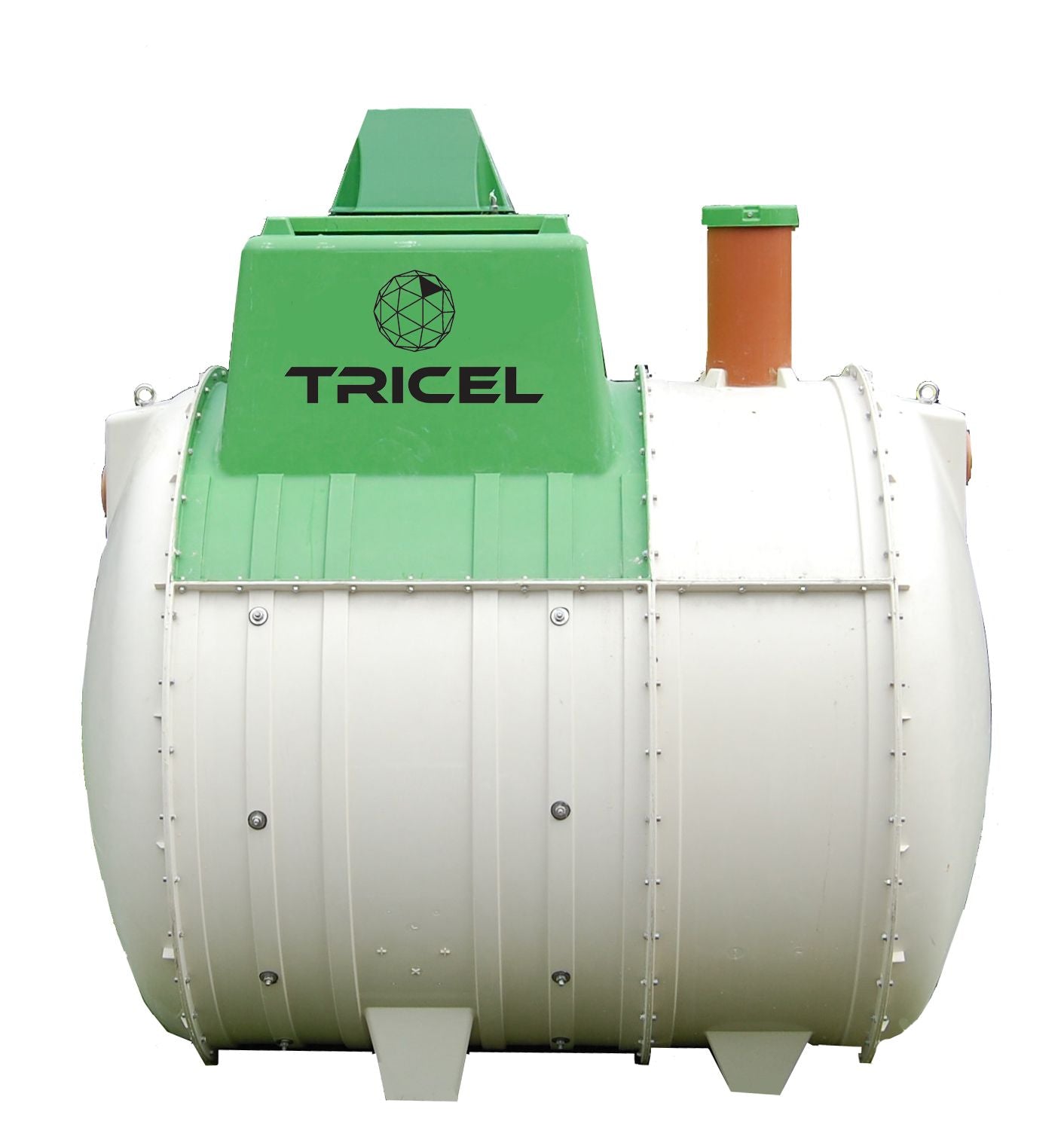

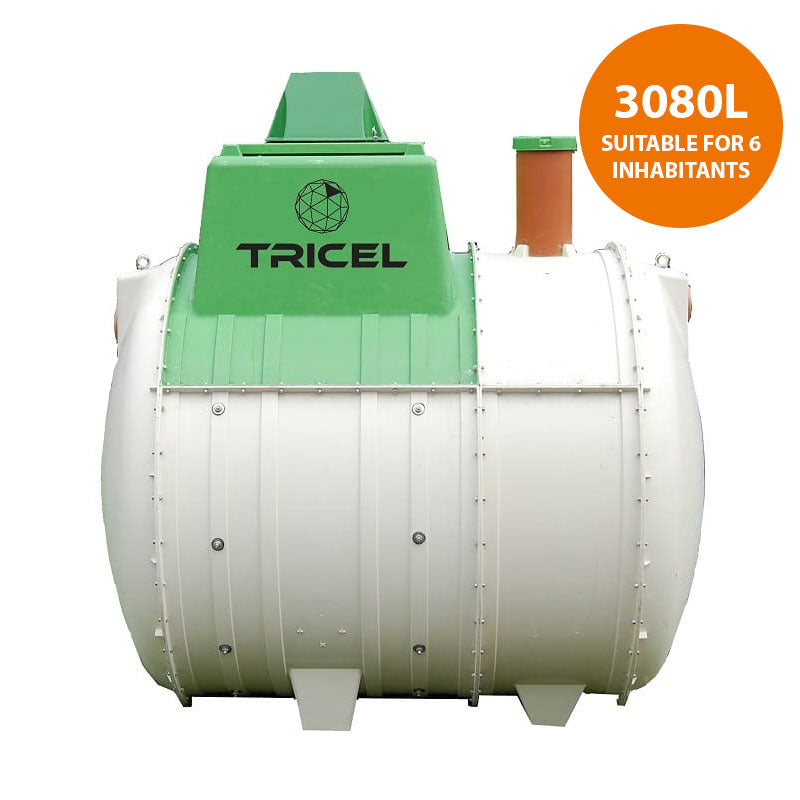

Tricel Novo SR6 Sewage Treatment System (up to 6 person)
*Off loading is customer responsibility*
With a Tricel SR6 waste water treatment system, you get an exceptional plant for waste water and sewage treatment which is simple, cost-effective and ensures compliance with EU regulations.
 |
 |
 |
 |
 |
| Free UK Delivery (excluding highlands & islands) |
20 Year Structural Warranty |
1 Year Mechanical Parts Warranty |
Sewage Treatment |
Best Price Guaranteed |
Tricel Novo UK6 Drawing Gravity
Tricel Novo UK6 Drawing Pumped
Tricel Novo UK6 Wiring Diagram Gravity
Tricel Novo UK6 Wiring Diagram Pumped
Tricel Novo Certificate

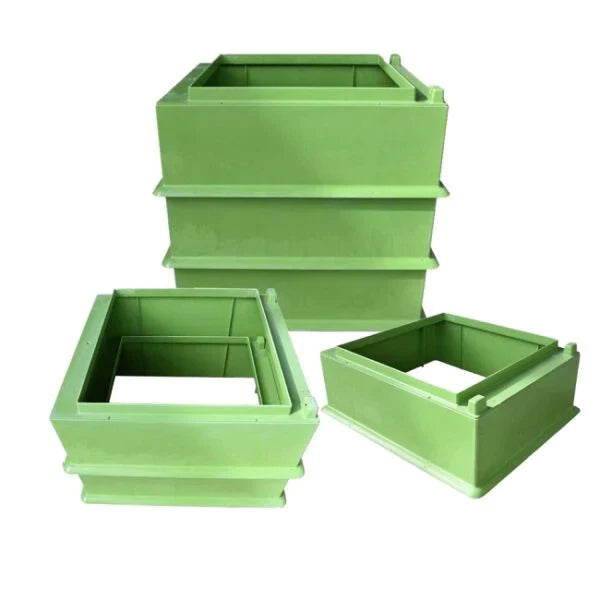

Tricel Novo Turret Riser Installation Guide
Commissioning and Servicing Information
Tricel 6GSR Manual
How a Tricel SR6 works
Waste water enters the primary settlement chamber where heavy sludge and solids separate from the liquid and settle at the bottom of the tank. A scum is formed at the surface of this liquid which keeps odours from escaping. The sewage then passes into the aeration chamber where masses of naturally present bacteria consume the sewage. These bacteria are kept alive with air which is fed from a quiet, energy-efficient air compressor. These bacteria attach and multiply on a specially-designed filter media which has a lifetime guarantee.
Features and Benefits
- High performance certificated under EN12566 Pt3
- Shallow dig - 1.375m base to inlet
- Manufactured by sheet-moulded composite (SMC), one of the strongest glass-reinforced plastic materials available
- Low energy costs (60-watt motor) and spare part costs
- Simple and economical to install with pea gravel/concrete surround and shallow dig
- Quiet in operation, underground installation minimises visual impact
- Mechanically simple sewage treatment solution
- Easy access for maintenance without entering the plant - compressor situated in the top
- Above-ground compressor position allows ventilation, and the fresh air feed enhances compressor life
- Lower emptying volumes due to size and shape - single point de-sludge
DELIVERY INFORMATION: Delivery available to all UK Mainland postcodes via the online store, excluding PA, IV, KW, AB - for these areas please call us for a delivery price.
