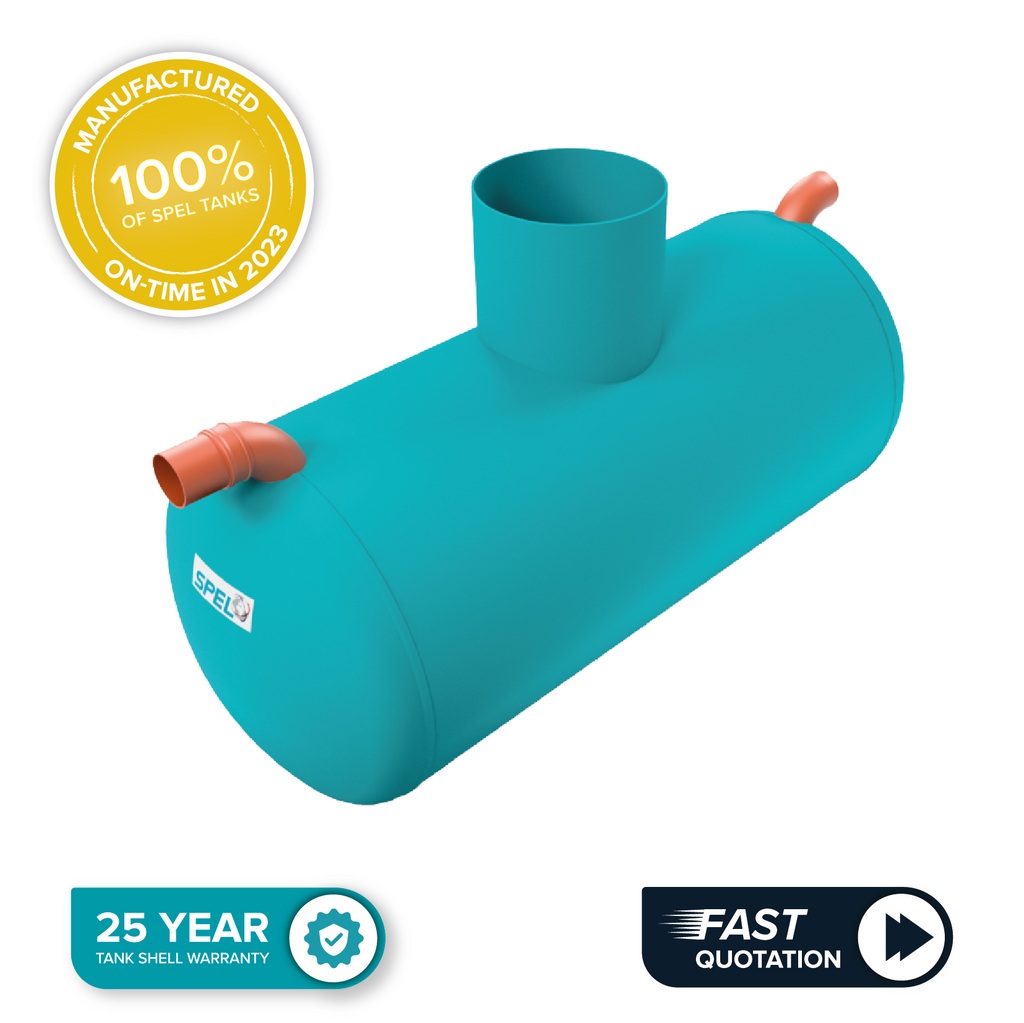

SPEL WDS200/1000 - Washdown & Silt Separator – 1,000 litre

 SPEL 1000L Vehicle Washdown Separator Drawing

 SPEL Vehicle Washdown Separator Enquiry Form

 Section 13 Installation

 25 Year Warranty

SPEL Washdown Separators are often used to serve vehicle washdown areas such as hand car wash facilities, self-service jet wash units and commercial brush type car wash facilities, with the main function of removing silt. These are not BS EN 858 compliant, if Class 2 BS EN 858 compliance is required, please enquire for a SPEL Full Retention Class 2 separator.

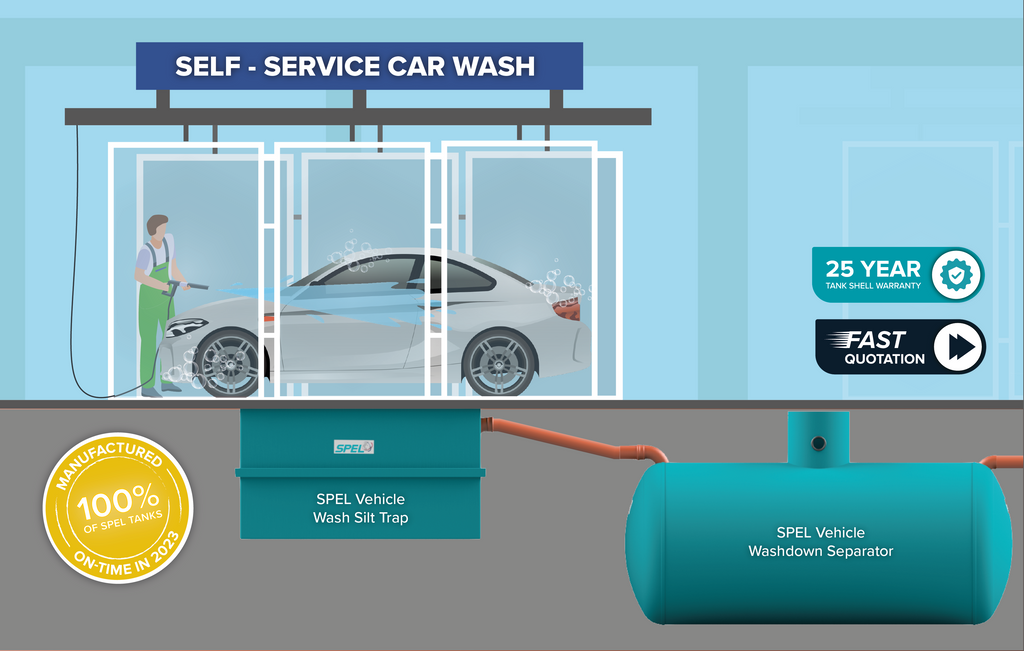

They are usually placed downstream of a SPEL Vehicle Wash Silt Trap.

Typical Applications:

• Hand car wash facilities
• Plant hire/plant washdown areas
• Self-service jet wash units
• Commercial brush type car wash
• HGV wash areas
• Construction washdown areas

Features and Benefits

• 25 Year Warranty and life expectancy in excess of 50 years at all depths and water table levels when installed as per our installation guidance
• Full working drawing supplied for approval to ensure you know what will be arriving and to ensure the correct product is supplied
• Easy access for maintenance
• Our GRP (Glass Reinforced Plastic) products are compliant to BS EN 13121, ensuring a long life span of the product.
• So far in 2023 (up to the end of October 2023) SPEL have manufactured 100% of tanks on time so you can be confident you will get your tank on time with no delays or surprises!

Our team of experts are ready to help, whether that is over the phone or email.

Specification

Total Capacity (litres):   1000

Length (mm):   1170

Outside Diameter (mm):   1225

Access Diameter (mm):   1no. 450 (additional or larger access shafts available upon request)

Inlet/Outlet (mm): as requested by customer
