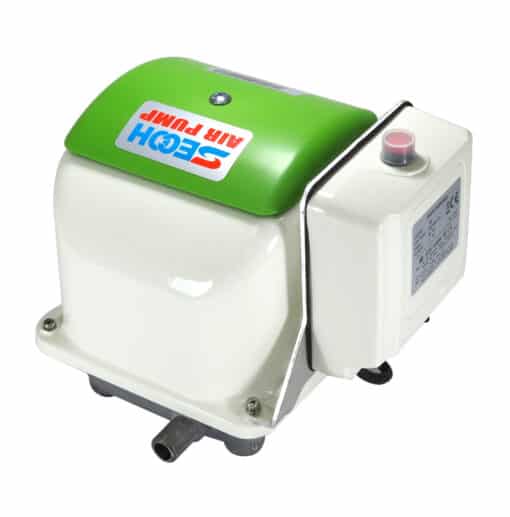

The Secoh JDK-40AL Linear Diaphragm Compressor Air Pump is a compact, efficient and reliable solution for a wide range of aeration and air pumping applications.
Designed as an upgraded replacement for the Secoh EL-40AL, the JDK-40AL provides dependable performance with low energy consumption and an integrated low-pressure alarm box for additional protection.
With an optimal airflow of 40 litres per minute (L/min) at an operating pressure of 0.20 Bar, this compact air pump is ideal for applications requiring a continuous supply of clean, oil-free air.
Key Features
- 40 L/min optimal airflow
- Optimal operating pressure of 0.20 Bar
- Direct upgrade/replacement for the Secoh EL-40AL
- Integrated low-pressure alarm box
- Compact and efficient design
- Low energy consumption
- Oil-free air delivery
- Quiet operation at just 33 dB(A) at 1.5 metres
- 230 VAC power supply
- 19 mm air connection
- Lightweight 4.5 kg construction
Secoh JDK-40AL Specifications
Efficient & Reliable Linear Diaphragm Air Pump
The JDK-40AL uses linear diaphragm compressor technology to provide a dependable and consistent air supply with low energy consumption. Its oil-free design delivers clean air without requiring oil lubrication, making it well suited to a variety of aeration applications.
The compact construction makes the JDK-40AL easy to install in space-restricted areas, while its low operating noise of just 33 dB(A) helps minimise disturbance during operation.
Built-In Low-Pressure Protection
For added safety, the Secoh JDK-40AL features an integrated low-pressure alarm box. This provides an additional level of protection by helping identify low-pressure conditions that may indicate a problem with the air system.
EL-40AL Replacement
The JDK-40AL is designed as an upgraded replacement for the Secoh EL-40AL, providing a modern and efficient alternative for existing installations.
If you're replacing an EL-40AL air pump, the JDK-40AL combines reliable Secoh performance with a compact design, low power consumption and built-in pressure protection.
Ideal for Aeration Applications
With 40 L/min airflow, 35 W maximum power consumption and quiet operation, the JDK-40AL is a versatile choice for systems requiring reliable, continuous oil-free air. Its compact size, lightweight construction and 19 mm connection make it suitable for a range of air pumping and aeration installations.
Recommended Service Extras:
Service Kit - SE29
Diaphragm Kit - SE21
Filters - SE30
Magnets - SE4
SECOH air pumps are covered by a 2-year manufacturer's warranty. To maintain warranty eligibility, the pump diaphragms must be replaced annually. Warranty claims cannot be processed if the diaphragms have not been changed within the recommended 12-month service interval.
