The Harlequin 450 Litre Sewage Pump Station is ideal to use when gravity drainage cannot be achieved on site, particularly for smaller extensions or toilets. This packaged Effluent Pump Station is delivered ready to install and all internal fixtures are ready to use; all that you need to do is install pipework to and from the tank. As standard the Harlequin Effluent Pump Stations give grey water a 9m lift. Harlequin pump stations are designed to have a 24 hour storage capacity and are manufactured to BSEN752-6 standards.
Pump Station Installation Guide

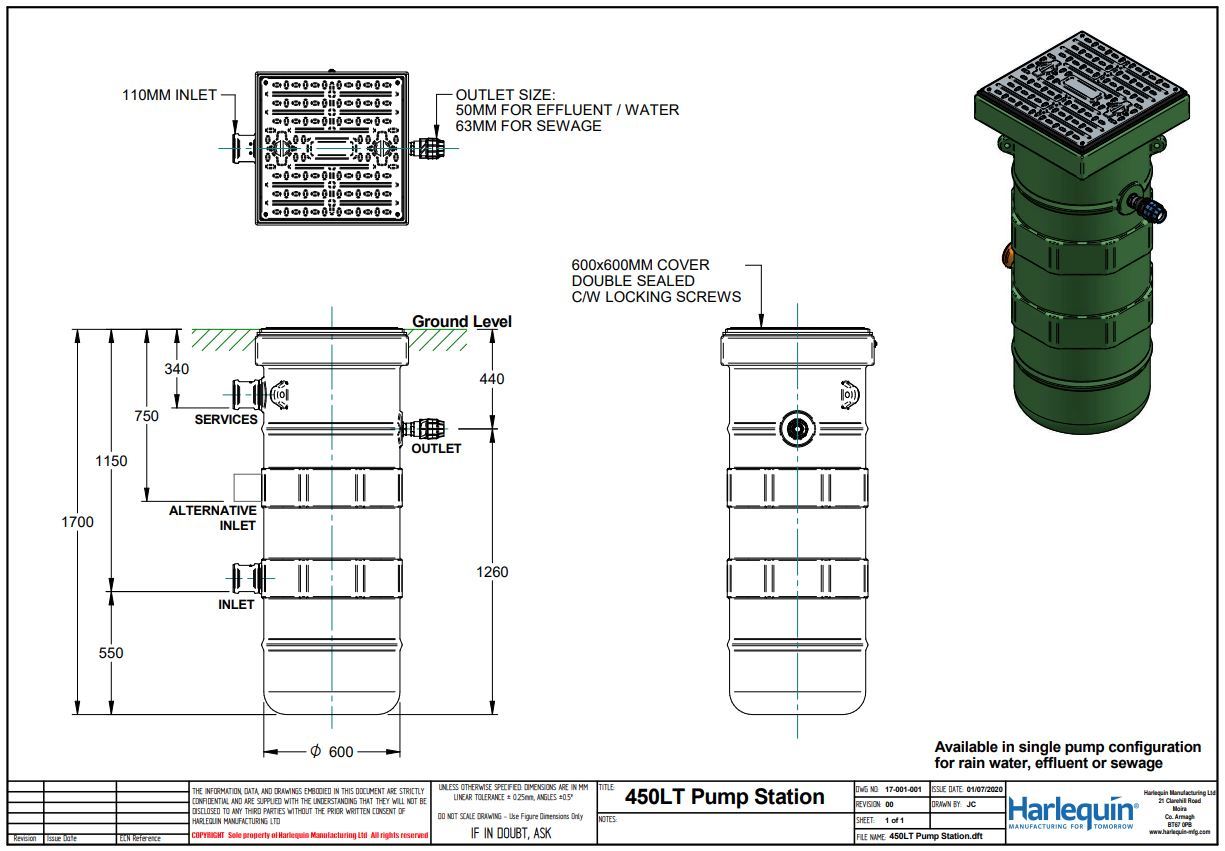

450 Litre Pump Station Line Drawing
450 Litre Pump Station Specifications
Specifications:
- Capacity: 450 Litres
- Tank Height: 1700mm
- Tank Diameter: 600mm
- DAB stainless steel 230 volt pump
- Moulded from durable medium density polyethylene material
- 110mm inlet connection
- 63mm outlet connection
- 110mm services duct
- Integrated lifting eyes for ease of handling and installation
- Double sealed 600x600mm galvanised steel manhole cover, c/w locking screws
- Brass gate valve and PVC Union connection for ease of servicing
- Stainless steel pump lifting chain(s)
- Non-return valve
Benefits of the Harlequin Effluent Pump Station
-
Durable & Stable Product – Made from tough durable polyethylene, it is easy to transport and has a wide base for stability.
-
Easy to install – Simple yet effective pipework makes it extremely easy to install.
-
Saves Money – With an easy installation due to the systems compact size and lightweight, it also promotes low maintenance reducing costs.
-
Compact System – A perfect compact solution providing 24-hour pump & storage capabilities for domestic applications.
Offloading
It is the customer's responsibility to offload with suitable equipment on the day of delivery and a failed delivery may result in additional charges.
Option for HIAB offload available on request at additional cost.
We recommend installers and/or plant hire & materials for install such as excavators, aggregates etc are not booked until you are in receipt of the goods. Direct Drainage cannot be held responsible for costs incurred due to unforeseen delays.
Lead times should only be used as a guide and are subject to change, please call our friendly team to confirm delivery and off-loading details on 01388 537 050.
Standard Commissioning
A Standard Commissioning carried by an RA Dalton Ltd accredited Engineer will include the following:
- Carry out visual checks of the installation
- Check the installation meets the manufacturer’s requirements, installed within their guidelines
- Check all mechanical components
- Check blower pressure, air hose, (aeration only)
- Check clean air intake to blower housing/kiosk (aeration only)
- IPS Models – check and test integrated pump
- Test and set any alarms supplied with the unit (PPFDS, high Level Float)
- Make any minor adjustments
- Make any final connections
- Provide a commissioning certification
On completion, RA Dalton will provide a site specific commissioning certificate
PLEASE NOTE: WE WILL ASK THAT A PRE COMMISSIONING CHECKLIST IS COMPLETED PRIOR TO ARRANGING ATTENDANCE TO ENSURE THE LEVEL OF COMMISSIONING REQUIRED IS STANDARD
