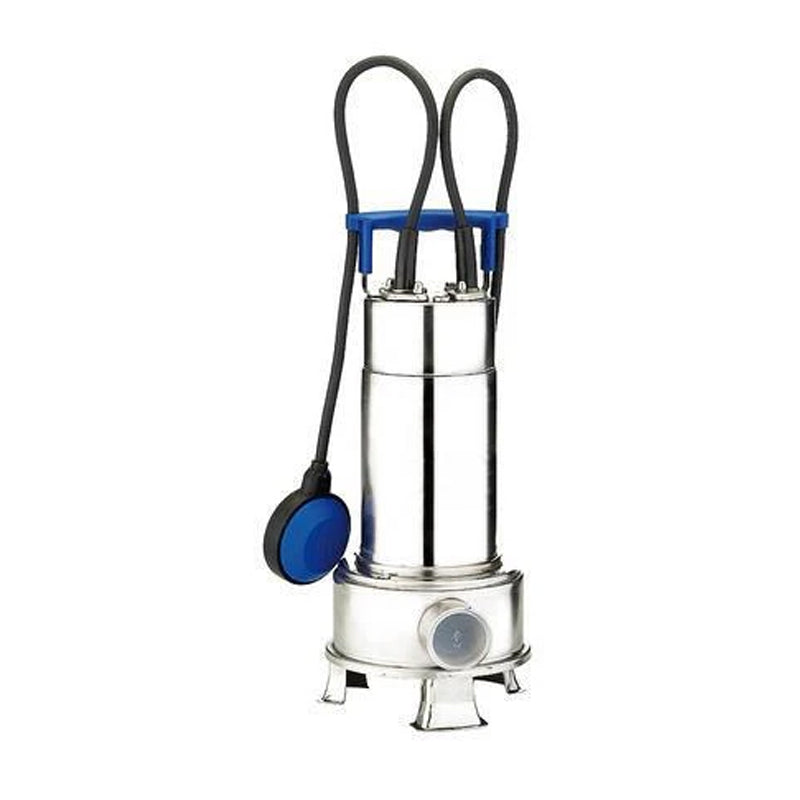

The Ebara Right 100 Automatic Submersible Pump with Float Switch is a single-phase stainless steel submersible pump, suitable for dirty water systems with some solids and applications, including waste water treatment system and final effluent pumping stations.

Pump Technical Data

• Maximum immersion: 2m for pumps with 5m cable


• Maximum immersion: 7 m for pumps with 10m cable


• Maximum temperature of the liquid: 50°C


• Maximum solids size for passage: 35 mm


• Discharge connection: G1½

Technical Specification

• Self-ventilated 2 poles asynchronous motor


• Class of insulation F


• IPX8 Protection rating


• 230V ± 10%, 50Hz single phase voltage


• 400V ± 10%, 50Hz three phase voltage


•
  Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
