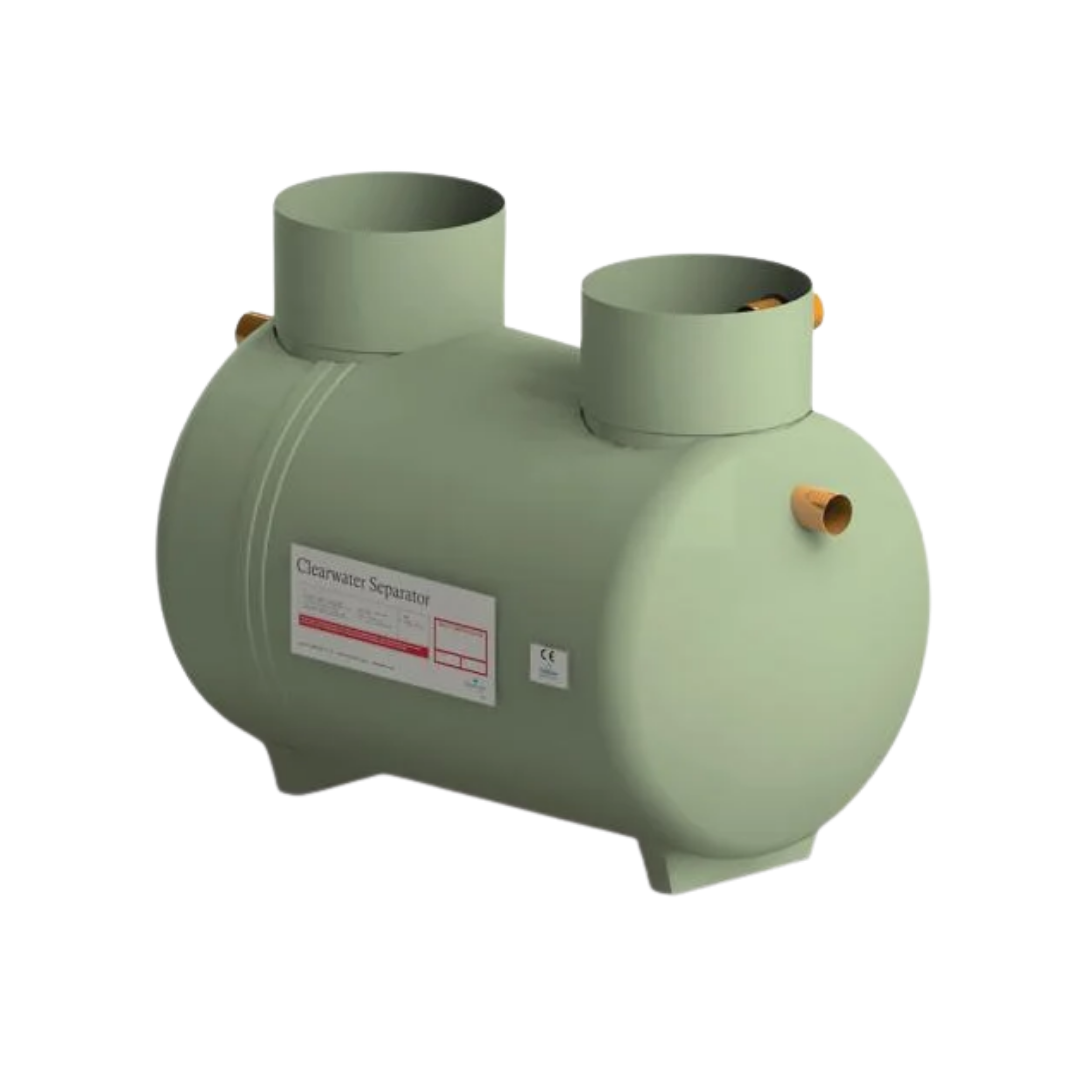

The Clearwater 2000L Grease Separator allows fats and grease to naturally separate out from water, allowing their removal prior to the drainage system. This is an effective and hygienic method of separating fat and grease from wastewater flow.
Grease separators are designed for small canteens and public houses, as well as for larger applications such as commercial kitchens, hotels and big restaurants. The separator should be installed close to the source of contamination before any foul waste can enter the drainage flow and to suit the expected liquid temperature.
Clearwater Grease Separators Separators Installation & Operation Manual
Clearwater NSG04 2000 Litre Drawing
Clearwater NSG04 Specification
| Model No: |
NSG04 |
| Flow Rate (litres/second): |
4 |
| Length of Body (mm): |
2072 |
| Distance Between Necks (mm): |
872 |
| Capacity (litres): |
2000 |
| Approx. Weight - Empty (kg): |
120 |
| Approx. Weight - Full (kg): |
1860 |
| Shipping Height (mm): |
1570 |
| Fall Across Unit (mm): |
70 |
Clearwater NSG04 Features and Benefits
-
Greatly reduces drain blockages, for maximum operational efficiency
- Helps improve performance of septic tanks and field drains for best results
- Prevents contamination of small sewage treatment plants, reducing risk of breakdown
- Compliant with BS EN 1825-1
- Protects mains drainage system from grease blockages
- This range does not come with a manhole cover/frame as they can be installed in different areas - you will need to purchase this separately when you have determined the install location (pedestrian duty, heavy duty etc.)
Clearwater NSG04 Alarm Options
Environment Agency PPG3 Guidelines stipulate that all separators must be fitted with a robust system to provide an audible and visual alarm if the grease level becomes too high. We strongly recommend that you purchase the
Darcy Mains Separator Grease Alarm alongside this item, and it will be delivered with the separator ready to wire in.
Standard invert is 0.5m. Additional extension necks are available on request. Call us on 01388 537 050 to get an accurate quote
| Tank Code |
Capacity (litres) |
Length (mm) |
Flow (litres/second) |
Meals served per day |
| NSG04 |
2000 |
2072 |
4 |
200 meals |
| NSG06 |
3000 |
3018 |
6 |
300 meals |
| NSG09 |
4000 |
3895 |
9 |
500 meals |
| NSG18 |
8000 |
3231 |
18 |
700 meals |
| NSG24 |
11,0000 |
4386 |
24 |
900 meals |
