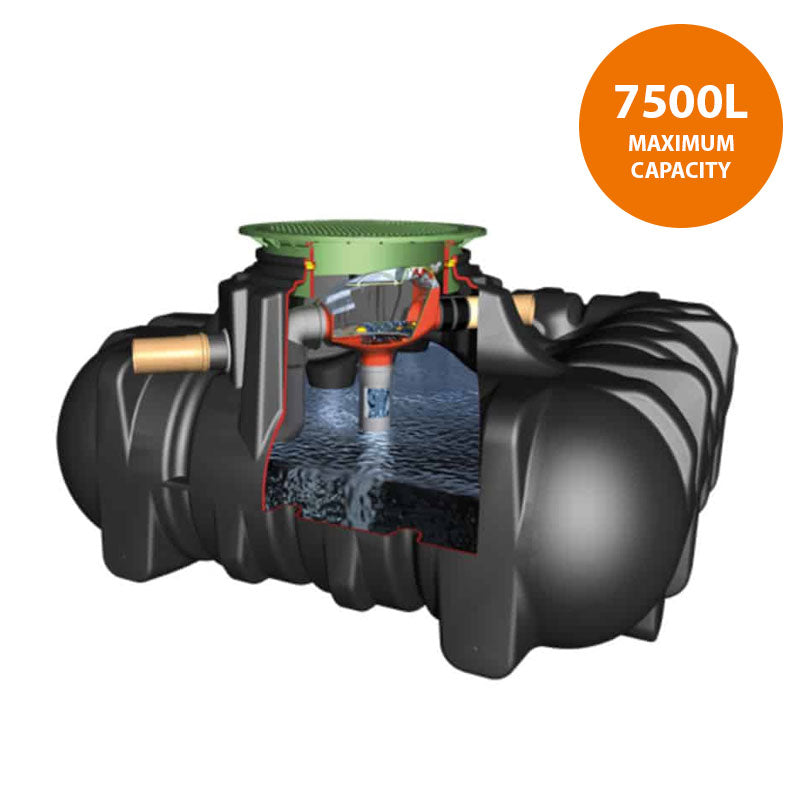

The GRAF Platin In-Direct Complete Package – 7500L is a high capacity fully integrated rainwater harvesting system designed for residential and light commercial properties seeking a gravity-fed water supply. With a 7500-litre underground tank, this system collects and stores rainwater for non-potable uses such as toilet flushing, laundry, and garden irrigation.
Unlike direct systems, the in-direct setup uses a header tank to distribute water via gravity, reducing pump wear and offering smoother pressure control. The system includes all essential components—Minimax-PRO filter, submersible pump, float sensor and header tank for a complete and efficient installation.
Customer Notice: The processed water may be used to water the garden, flush toilets, wash clothes and as conventional cleaning water. It is Not suitable for consumption or personal hygiene.
What’s Included in the 7500L Complete Package:
PLATIN Shallow Dig Tank (7500L)
Telescopic Dome Shaft Mini Green with PE lid (pedestrian or vehicle loading)
Minimax Filter supplied in accordance with the type of tank
Submersible Pump with floating water intake
Float Switch (connected from mains water backup unit to the underground tank)
Header Tank Package
Additional Components Required For Installation (Not supplied)
100mm diameter duct pipe to contain; float sensor cable, power cable for the pump, also bringing mains water to underground tank as and when required.
100mm diameter drainage pipe connected from downpipes to the inlet at the top of the tank (all downpipes brought into one pipe for connection to the filter.
100mm diameter pipe for overflow from the tank to mains drainage network
Product Features:
7500L Capacity: Large underground storage for rainwater, ideal for high-demand domestic reuse.
Complete Installation Kit: Includes all necessary components for a full installation.
Space-Saving Design: Flat tank profile allows installation in shallow excavations.
Integrated Filtration: Built-in filter basket removes debris before water enters the tank.
Versatile Applications: Suitable for garden watering, flushing toilets, and washing machines.
Eco-Friendly Solution: Reduces mains water usage and supports sustainable water management.
LEAD TIME: APPROXIMATELY 5-7 WORKING DAYS
Specifications:
| Specification |
Value |
| Model |
G70191
|
| Maximum Capacity |
7500L |
| Dimensions (L x W x H) |
3600 x 2250 x 1250 mm |
| Weight (Empty) |
360 kg |
| Tank Design Life |
50 Years |
| Tank Warranty |
15 Years |
Need help selecting the right system? Call our expert team on 01388 537 050 or email us with your requirements – we’re happy to help.
