Produce codes: PQ-065/PDSET and PP/14012 /12V

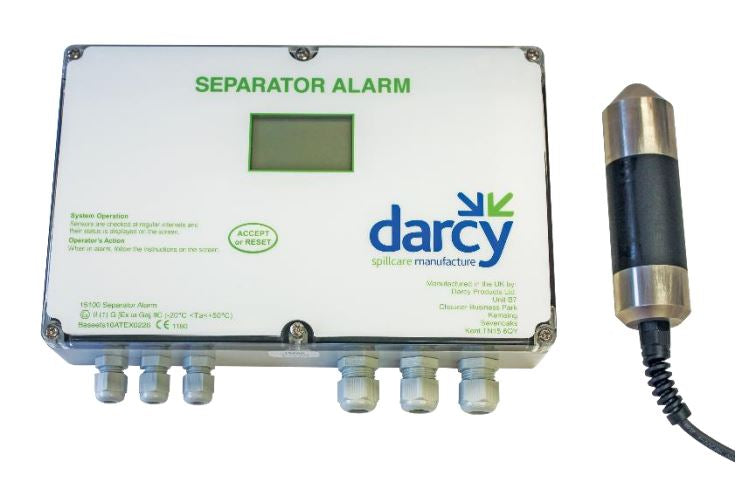

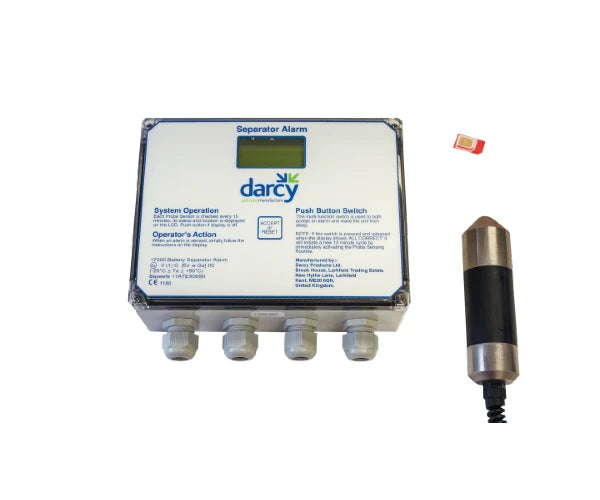

Oil Separator Alarm with Beacon and SMS Alerts | ATEX Approved
The Battery-Powered GSM Separator Alarm is the ideal solution for both new build sites and retrofit applications where mains power is unavailable or difficult to access. Designed for easy, non-invasive installation, this standalone system eliminates the need for trenching, ducting, or long cable runs—making it a cost-effective alternative to traditional mains-powered alarms.
Product Overview
This advanced interceptor alarm system continuously monitors up to two oil/water separator tanks for the accumulation of oil, silt, or excessive liquid levels. Using high-precision probes, the system helps prevent overflows and environmental contamination by providing early warnings.
Equipped with GSM functionality, the unit supports 2-way communication and can send real-time SMS alerts to up to 8 designated users. The alarm system performs an automatic self-check every 15 minutes to assess probe status and battery condition, notifying users immediately of any issues via text message.
For on-site checks, users can manually trigger a status update using the integrated button on the front panel.
Technical Specification
-
Power Source: 4 x 1.5V Alkaline ‘D’ Cell Batteries
-
Enclosure: Weatherproof IP65-rated ABS Housing
-
Display: Integrated Liquid Crystal Display (LCD)
-
Alarm Output: Flashing Beacon + GSM SMS Alerts
-
Probe Range: Up to 200 metres (cable dependent)
-
Explosion Safety: ATEX Approved
- Marking: Ex II (1) G [Ex ia Ga] IIC
- Operating Temperature: -20°C to +50°C
- Certification: Baseefa
Key Benefits
- Detects excessive oil, liquid, and silt levels
- Notifies when the separator requires emptying
- Enables remote monitoring via SMS alerts
- Reduces waste management and servicing costs
-
Prevents environmental pollution and fines
- Compatible with all separator/interceptor systems
- Fully compliant with EN858-1 & EN858-2 and PPG3
-
ATEX-certified for use in hazardous environments
What’s Included
- Battery-Powered Control Unit
- Liquid Crystal Display
IP65-Rated Enclosure
- GSM Module for SMS Notifications
- Flashing Beacon Alarm (optional)
- ATEX-Approved Probe Interface
Perfect For:
- Remote and unmanned sites
- Commercial and industrial separators
- Car parks, forecourts, and logistics hubs
- Retrofitting existing interceptors
- Sites without access to mains electricity
Why Choose Darcy GSM Separator Alarm?
Darcy battery-operated interceptor alarm combines reliable oil level detection, silt and water monitoring, and GSM-based notifications in a single, easy-to-install unit. Whether you're protecting the environment or ensuring regulatory compliance, this unit provides peace of mind and operational efficiency—without the need for external power.
