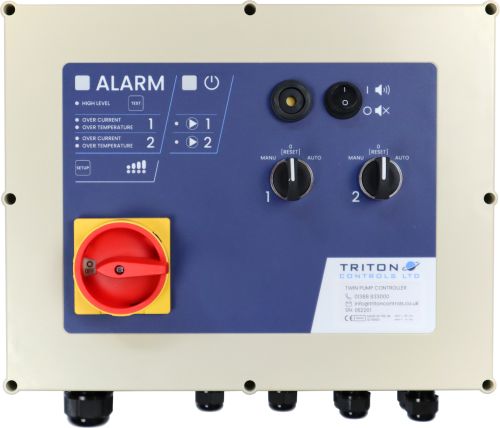

Triton LR40 Twin Pump Control Panel

Over 17,000+ Happy Customers

Triton LR40 Twin Pump Control Panel

£389.99

(exc VAT)
£389.99

(exc VAT)
Quantity
VERY POPULAR! ONLY 5 LEFT IN STOCK
OUT OF STOCK
Restocking soon! PREORDER NOW
HURRY! BUY NOW

VERY POPULAR! ONLY 5 LEFT IN STOCK

Secure Payment - Multiple Payment Gateways

Product Overview

The LR40 is Triton Controls dual pump control panel with a built-in alarm for domestic or industrial pumping stations.

  • Suitable for either single-phase or three-phase power
  • Ideal for clean and wastewater applications
  • Lockable interlocked mains isolator
  • Inbuild Audio and visual alarm
  • Pump operating/tripped and error indicators
  • Auxillary alarm output for an external beacon or buzzer/siren
  • Automatic alternating pump start
  • Pump protection, including pump over-current shutdown & pump over-heating shutdown
  • Simple installation with large terminal blocks for input/output wiring

Specifications

Supply voltage 230Vac I/III or 400Vac III    -20% +30% 50/60Hz
Supply voltage wiring size (max) 16mm2
Pump current range 1-12A
Pump output wiring size (max) 12mm2
Overload setting (Imax) Settable between 1A to 20A
Float switch supply voltage 5Vdc 10mA
Float switch and alarm output wiring size (max) 10mm2
Pump Protection Overcurrent / Over-temperature / alternating pumps
Alarm output 10A 250Vac or 125Vdc isolated relay output SPDT
Alarm acoustic output 103dB 3kHz 12Vdc piezo buzzer
Auxiliary alarm output 12Vdc 500mA
IP rating IP65
Size 340mm x 300mm x 120mm
Weight 3.7kg
Operational temperature range -10°C to +55°C
Gland configuration Supply 1 x M25 / Pumps, inputs & outputs 6 to 9 x M16
Back up battery* The alarm system is operational for >48h
