Vehicle Washdown Silt Traps
Fill in our enquiry form for a full, comprehensive and site-specific quotation turned around to you quickly.
SPEL Vehicle Wash Silt Trap Website Enquiry Form
SPEL Vehicle Wash Silt Trap Drawing
Vehicle Wash Silt Trap Installation
25 Year Warranty

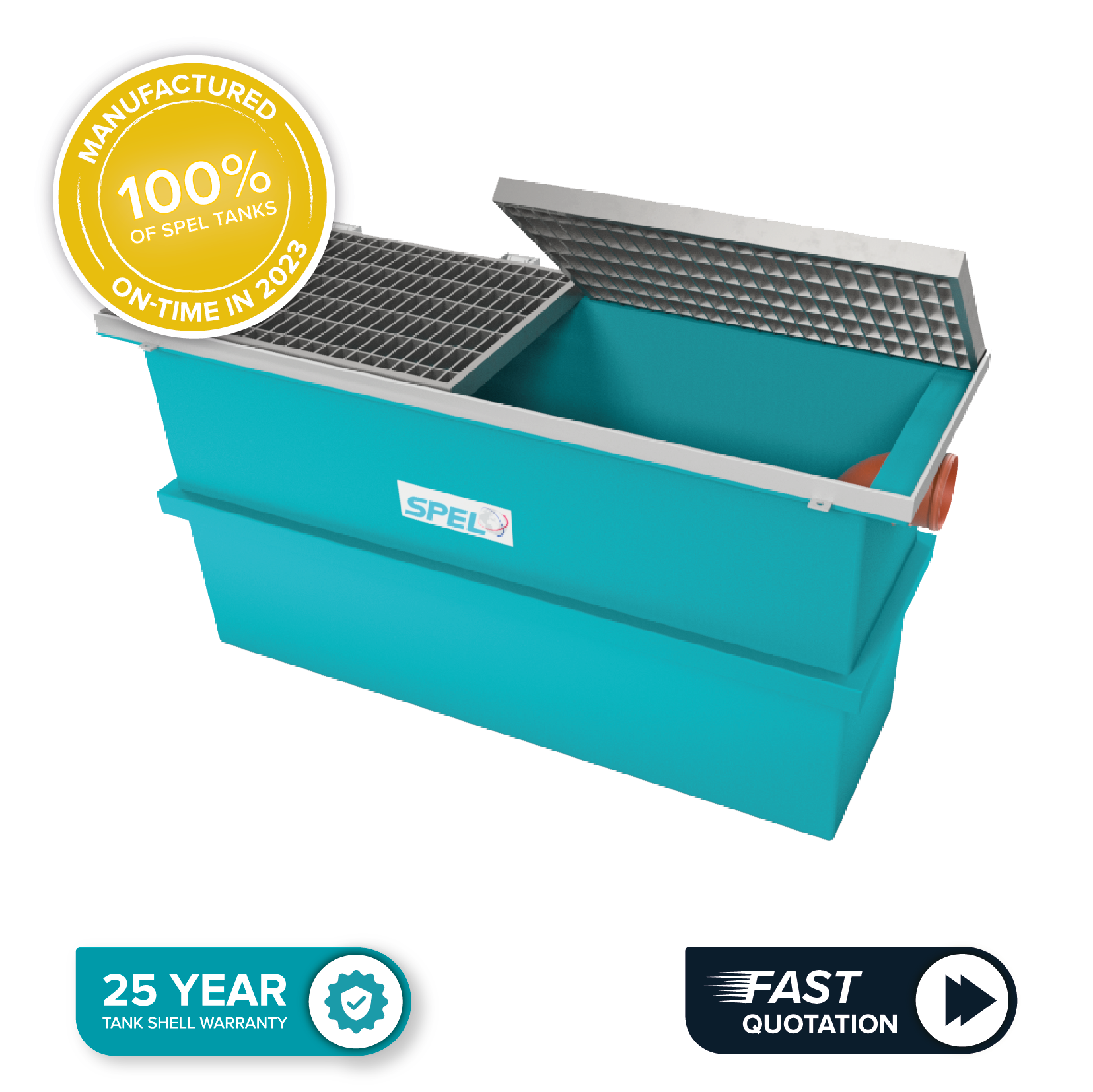

SPEL ST800-5 Vehicle Wash Silt Trap – 5 Tonne (Facta B)

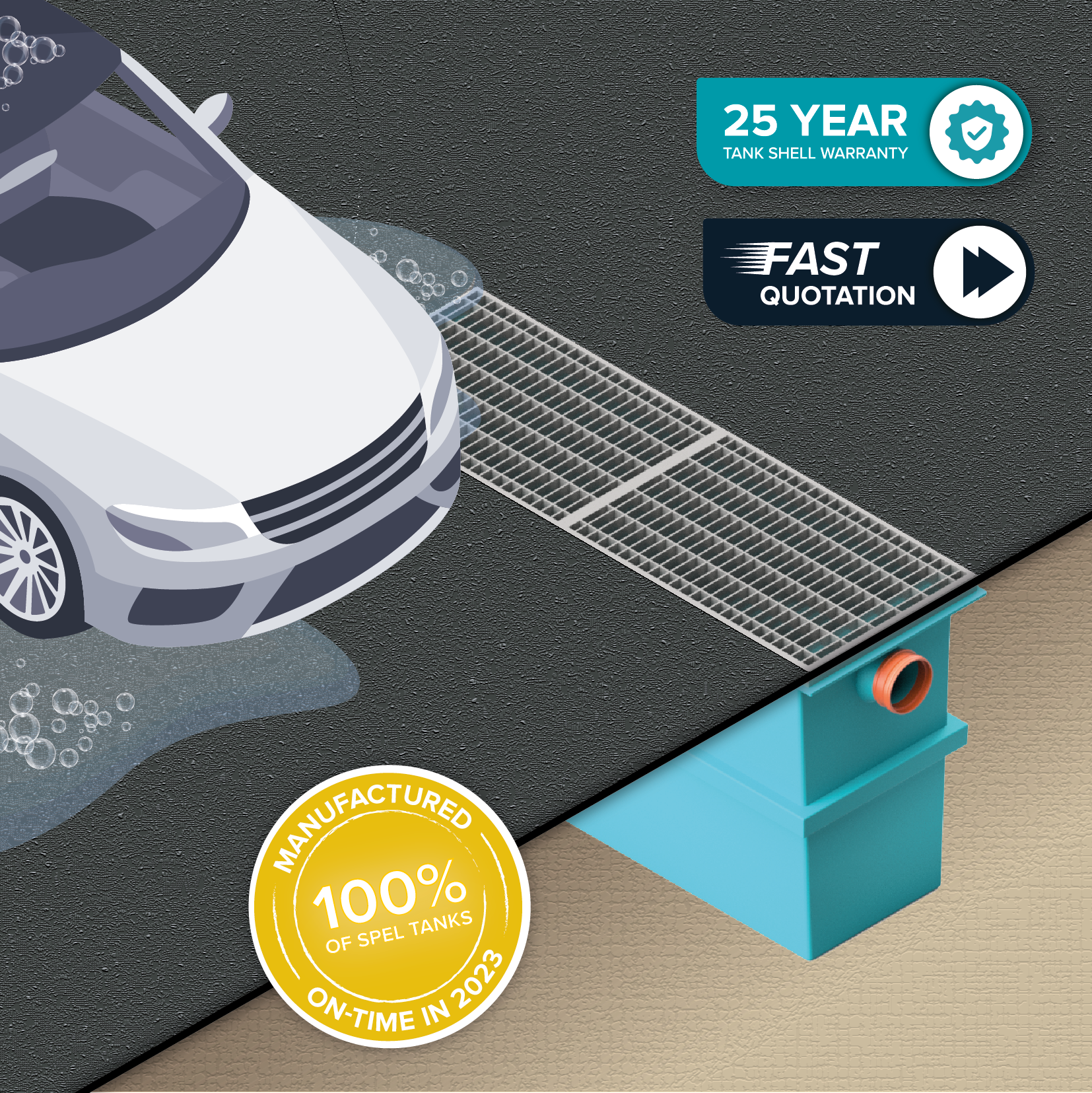

SPEL Vehicle Wash Silt Traps are installed right in the area where the washing activity happens with the galvanised grating being installed at ground level with all of the washdown water running into the silt trap via this open top grating. The Vehicle Wash Silt Trap is usually installed upstream of a SPEL Vehicle Washdown Separator. This is a great upstream option because it captures the bulk of the silts and because of its large opening (the top grating opens on a hinge) it has great access for very easy silt removal, meaning that the SPEL Vehicle Washdown Separator downstream does not have to be emptied as often.
This Vehicle Wash Silt Trap comes with a Facta B (5 Tonne) grating for use with light vans and cars. A Facta D (12 Tonne) grating is available for HGVs and similar.
Features and Benefits
- 25 Year Warranty and life expectancy in excess of 50 years when installed as per our installation guidance
- Easy access for maintenance
- So far in 2023 (up to the end of October 2023) SPEL have manufactured 100% of tanks on time so you can be confident you will get your tank on time with no delays or surprises!
- Two grating types for either Facta B or Facta D for vans and cars or HGVs.
Specification
Length (mm): 2050
Width (mm): 750
Height (mm): 1065
Silt Storage (litres): 800
Cover Loading: Facta B – 5 tonned as often.
This Vehicle Wash Silt Trap comes with a Facta B (5 Tonne) grating for use with light vans and cars. A Facta D (12 Tonne) grating is available for HGVs and similar.
