Reliable Grease Level Monitoring for Interceptors & Grease Separators

The Darcy Complete IP65 Mains-Powered Grease Separator Alarm is a robust and reliable solution for monitoring grease buildup in commercial and industrial grease traps, interceptors, and separators. Designed for outdoor installation, this intrinsically safe system ensures compliance with environmental regulations while helping you manage waste efficiently.

Equipped with a high-performance 38mm conductivity grease probe, the system continuously monitors grease levels and provides real-time alerts when thresholds are exceeded. The unit is ideal for facilities with access to mains power and where grease management is critical for maintaining safe and clean operations.

---

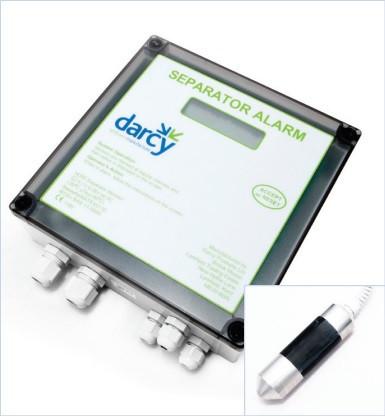

Included in the System

• IP65-Rated Mains-Powered Control Panel (230V)
• 38mm Grease Conductivity Probe with 5m Flylead
• Intrinsically Safe System for Hazardous Areas
• ATEX Approved: Baseefa 08ATEX0110/1
• Explosion Protection: [Ex ia] IIC (–20°C ≤ Ta ≤ +50°C)

---

Advanced Alarm Features

• Monitors up to 3 grease probe units for accurate multi-point detection
• Integrated output relay allows connection to remote beacons, control panels, or building management systems
• Long-distance installation capability: up to 300 metres from the control panel (installer to provide appropriate cabling)
• Reliable visual and audible alerts for high grease levels
• Supports real-time status relays to offsite monitoring systems

---

Key Benefits

• 📢 Alerts for Excessive Grease Buildup
  Prevent blockages, backups, and contamination by detecting grease before it causes issues.
• 🧹 Notifies When Separator Needs Emptying
  Helps reduce the risk of overflow and environmental damage.
• 💸 Reduces Waste Management Costs
  Enables servicing only when necessary, saving time and operational expense.
• 📏 Complies with Industry Standards
  Built to meet EN858-1 & EN858-2 and PPG3 compliance for grease and oil interceptors.
• 🔧 Versatile Compatibility
  Can be retrofitted to all major interceptor brands, including Klargester and Conder.
• 🔒 Improves Site Safety & Compliance
  Ensures proactive monitoring for improved environmental protection and legal compliance.
