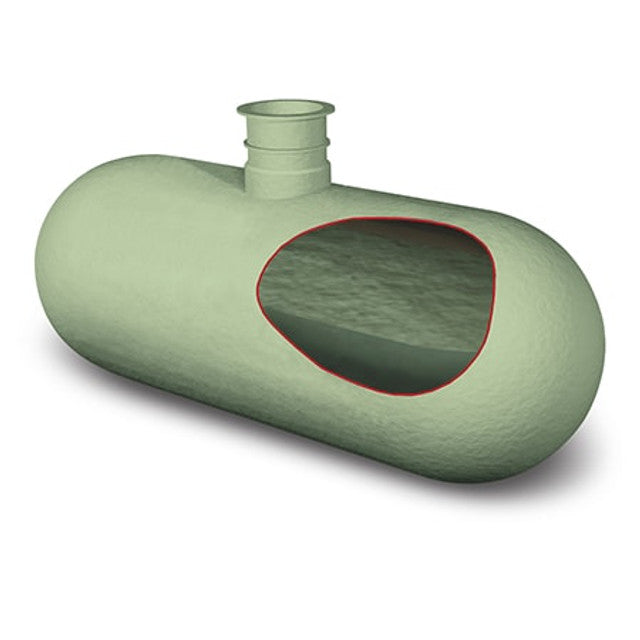

Clearwater 54,000 Litre Septic Tank
Clearwater 54,000 Litre Septic Tank
Clearwater 54,000 Litre Septic Tank
£11,918.64

(Exc. VAT)

Email Now to Order

sales@direct-drainage.co.uk

Or Call to Action

01388 537 050


The Clearwater 54,000 Litre Septic Tank is an efficient storage solution for residential and commercial properties. With easy to use inlet and outlet ports, it is capable of storing up to 54 cubic metres of wastewater. Constructed with a durable, reinforced concrete shell, it is built to last up to 25 years with minimal maintenance. Clearwater septic tanks are designed to meet both the installation requirements and the standards of discharge specified by BS 6297:1983.

18,000L - 79,000 Installation & Operation Guidelines

18,000L - 79,000L Septic Tank Drawing

A septic tank consists of a single chamber system that retains sewage from a property for sufficient time to allow the solids to form into sludge at the base of the tank, where it is partially broken down through anaerobic digestion. The remaining liquid in the tank then overflows from the tank by means of an outlet pipe to a drainage field.

When siting units there are a number of factors to be considered. Systems should not be positioned closer than 7 metres to any dwelling and as far as possible from any watercourse, normally not less than 10 metres. Adequate access to tankers for emptying should also be taken into consideration.

Offloading is the responsibility of the customer

Specifications

Length (mm):   11222
Diameter (mm):   2620
Neck diameter (mm):   600
Inlet pipe size (mm):   160
Weight (kg):   2371

Secure Payment

Multiple payment gateways for fast secure checkout.

Best Price Guarantee

If you find the same product cheaper elsewhere, we'll match it.

Direct Drainage Reviews

You may also like

The Clearwater Septic Tank 2800L (onion tank) comes with cover and frame

 Clearwater Alpha Septic Tank 2800l Drawing

Clearwater Alpha Septic Tank Installation Guidelines


The Clearwater Septic Tank 2800l (onion tank) comes with cover and frame

Clearwater septic tanks are designed to meet both the installation requirements and the standards of discharge specified by BS 6297: 1983.


The septic tanks in this range all achieve a high degree of settlement, producing a quality of effluent for discharge to a land drainage system.

Clearwater septic tanks are used for domestic sewage disposal where connection to a mains sewer is not practical. The septic tanks in the range all achieve a high degree of settlement, producing a quality of effluent for discharge to a land drainage system.

Clearwater units are available in two shapes, spherical and cylindrical, with sizes suitable for all domestic applications.

Clearwater septic tanks are designed to meet both the installation requirements and the standards of discharge specified by EN 12566 Part 1.

Clearwater tanks are used for domestic sewage disposal where connection to a mains sewer is not practical.

Please contact the Direct Drainage team for more information



£863.00£802.00

The Clearwater 200L Pump Station is ideal for small-scale applications constructed below the main sewage system level. Common uses include home extensions, outbuildings, pool houses, and garden rooms. This pump station includes an MDPE connector and Isolator.

Volume 200ltr
Weight 50kg
Depth 700mm
Diameter 610mm
Leadtime 3 - 5 Working Days
Pump Type Single



Clearwater Pump Station Installation Manual

Clearwater CWP1 Drawing

Clearwater High Level Alarm Drawing


The CWP1 is commonly used for outbuildings, cellars, outdoor toilets and extensions. You can rest assured that a Clearwater tanks are robust and durable with the best quality stainless steel submersible pumps.

Specifications

Chamber Size (mm) Capacity (L) Tank Material Control Panel Alarm Pump Type
610 x 700 200 GRP N/A Optional Single



Commissioning and on-going servicing

Our sister company, RA Dalton are the UK's leading wastewater specialists. We can offer Klargester accredited commissioning and on-going servicing at a great price. Give us a call for expert advice on 01388 537 050 or email sales@direct-drainage.co.uk



£721.00£619.00

The Clearwater Septic Tank 3800L comes with cover and frame

Clearwater septic tanks are designed to meet both the installation requirements and the standards of discharge specified by BS 6297: 1983.

 Clearwater Alpha Septic Tank 3800l Drawing

Clearwater Alpha Septic Tank Installation Guidelines

The septic tanks in this range all achieve a high degree of settlement, producing a quality of effluent for discharge to a land drainage system.

Clearwater septic tanks are used for domestic sewage disposal where connection to a mains sewer is not practical. The septic tanks in the range all achieve a high degree of settlement, producing a quality of effluent for discharge to a land drainage system.

Clearwater units are available in two shapes, spherical and cylindrical, with sizes suitable for all domestic applications.

Clearwater septic tanks are designed to meet both the installation requirements and the standards of discharge specified by EN 12566 Part 1.

Clearwater tanks are used for domestic sewage disposal where connection to a mains sewer is not practical.

Please contact the Direct Drainage team for more information

£1,043.00£970.00

The Clearwater BioAir CW2 for 6 person applies aeration technology to elevate wastewater quality before discharge. Offering flexible installation, the Clearwater BioAir is designed to suit domestic dwellings with a low visual impact and is supplied as standard with an Isolator Switch and has a standard 12 months standard manufacturer’s warranty.

Clearwater BioAir 2 Gravity Drawing

Clearwater BioAir 2 Pumped Drawing

Clearwater BioAir Blower & Duct Vent Drawing

Clearwater BioAir Extension Neck Fitting Instructions

Clearwater BioAir Installation & Operation Guidelines

Clearwater BioAir PIA Certificate


Clearwater BioAir CW2 (6 person) Features:

  • Suitable for shallow dig Installations
  • Suitable for use in traffic areas (structural design advice required)
  • Low level visibility
  • Improved effluent quality – BOD5 97.5%
  • Third party tested to EN 12566-3
  • Easy to install and operate
  • Supplied with isolator switch (High Level Alarm optional on IPS unit)
  • Affordable service plans available
  • Robust and Lightweight
  • 12 months warranty* (terms apply)


BioAir Applications:


      BioAir

      Model

      BioAir CW2
      Population Equivalent Unit 6
      Daily Flow m3/d 0.9
      Daily Load kg BOD5/d 0.36
      Daily Flow Q10 m3/h 0.09

      Measurements
      Outlet invert mm 600-900
      Width mm na
      Diameter mm 1470
      Length mm 2250
      Installation depth mm 1800-1580
      Inlet invert mm 500-800
      Cover Height mm na
      Inlet pipe work* mm 110
      Outlet pipe work* mm 110
      Material Construction MDPE or GRP MDPE
      Unit Weight kg 200

      Max Inlet Invert Using:
      Gravity Units: Max Invert: 1400mm
      Pumped Units: Max Invert: 1000mm
      For Inverts from 755 - 1200mm  order 1 X riser
      For Inverts from 1200 - 1400mm order 2 X risers

      Clearwater BioAir CW2 Sewage Treatment System (up to 6 person)
      £2,100.00£1,545.00
